GTengine - Testsequencer
GTengine is our powerful test sequencer for the reliable and fast execution of test programmes. The GTengine leaves nothing to be desired and also offers many additional features. Among other things, the GTengine offers user management including access rights management, graphical evaluations, Cpk value calculation, debug mode and much more.
Thanks to an open API interface and a plug-in architecture, our software can be individually and easily connected to external systems. In addition, EGTSL test programs of the compactTSVP from Rohde&Schwarz can be executed directly with our systems without any adaptations.
Key Features
- Multithread architecture
- Graphical user interface can be individually designed
- German and English language standard, other languages optional
- Access rights management with password protection
- Debug mode (on-the-fly)
- Graphical evaluations
- Open API (programming interface)
- Station concept for parallel testing and multi-stage testing
- Machine capability examination (MFU)
- Reporting
- Help function
Downloads

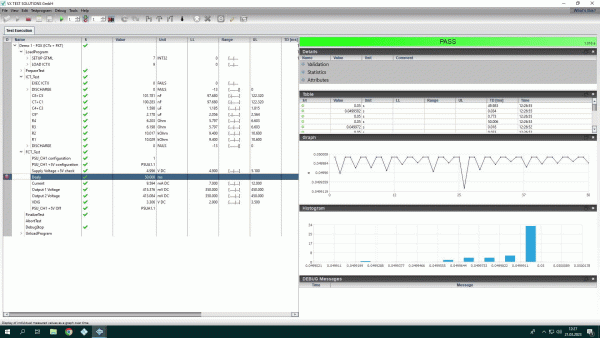

Debug-Mode
The debug mode can be opened parallel to the test sequence (on-the-fly) via password protection. Here, your staff can directly access the test programme and view the current values for each test step in real time.
Among other things, it is possible to:
- set brake points
- change values / tolerances
- set guard/sense points
- make test point swaps
- change parameterisation (e.g. change frequencies)
- view statistical evaluations
Parallel- and Multistationtest
With the help of the parallel or multi-station test, you save hardware resources and cycle time. The software workflow offers the following possibilities:
- Parallel test
- Multistation test (rotary table)
- Multipanel test
- Multipanel test in multi-station systems
Extensions via plug-ins
Every test system needs communication with external equipment and/or systems. Thanks to the "plug-in" architecture, the external resources can be integrated easily and quickly. These include, for example:
- Printer
- Scanner
- Handling systems/automation
- MES
- Databases
- Laser markers
- External sources
- ...and much more!
open API
The open API enables the individual adaptation of GTengine to your requirements. Thanks to the API, you are able to make adjustments independently. Alternatively, we will be happy to implement your requirements for you.

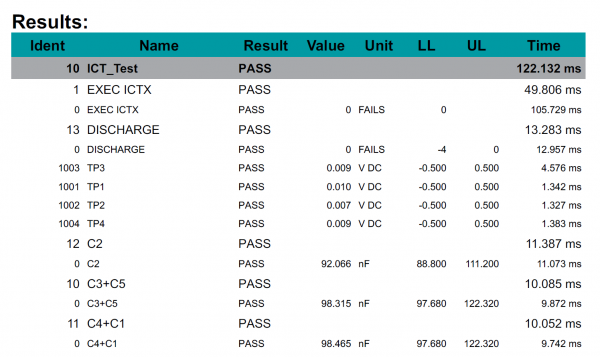

Reporting
GTengine documents all information for each test and can save it locally or store it on a database or MES system. The following file types are included as standard:
- HTML
- CSV
- XML
- json
- STDF
- SQL / MySQL
- Other file formats are optionally available.
For an optimal evaluation of the test results, we recommend our analysis tool GTanalyzer.
