GTbuilder - test programme development
GTbuilder is our development environment for the efficient creation of test programmes for in-circuit testing, functional testing and test system self-testing. It can be used both "offline" on an external computer and directly in production on the test system.

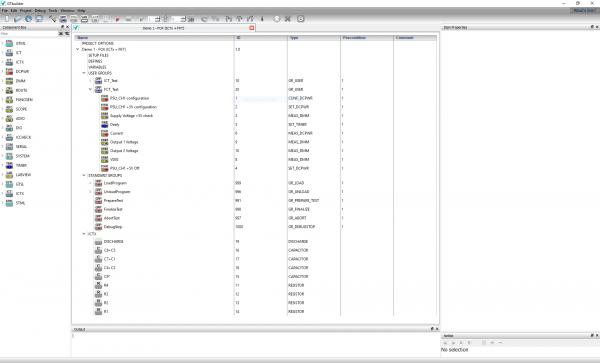

GTbuilder presents itself with a clear and modern GUI. It also offers the user intuitive operation and supports you even when creating a new test programme. For this purpose, we have developed a "wizard" that accompanies you during the creation of the test programme.
Key Features
- Wizzard - supports the setup of a new project
- Modern and intuitive GUI
- Drag&Drop editor - for ICT and FCT
- Alternative development environment for C/C++ integrated
- Automatic test program generator for ICT (CAD data required)
- ICTx - even faster with optimised routines
- Multipanel test
- Easy creation of the test system self-test
- Hardware scan
- German and English language as standard, other languages optional
- Help function
Downloads
Function test

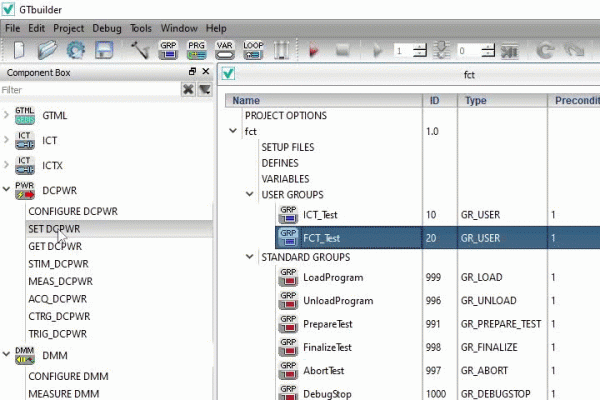

Due to the GTML, test methods for the function test are made available, which map all functions of the switching and measuring modules used in a routine. This routine can then be added to the test programme via drag & drop. Afterwards, only the desired measured values and tolerances as well as the wiring have to be specified and a test step is ready.
Alternatively, it is possible to switch to a development environment at any time to further develop the test programme in the "C" programming language.
ICT
GTbuilder offers various options for developing the ICT test programme:
- automated creation using CAD data

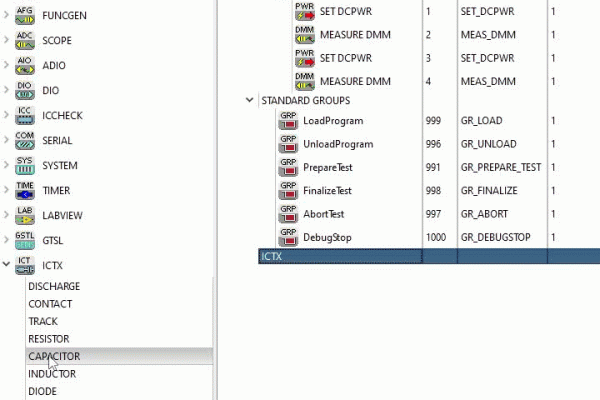

- Drag&Drop (ICTx)
- Programming in C
- Loading of eGTSL test programmes (cTSVP)
