Measurement and switching modules

CAN | cPCI | PXI | PXIe

Suitable hardware for your individual needs

In the following we would like to give you an overview of the most common measuring and switching modules.

Overview - measurement and switching modules

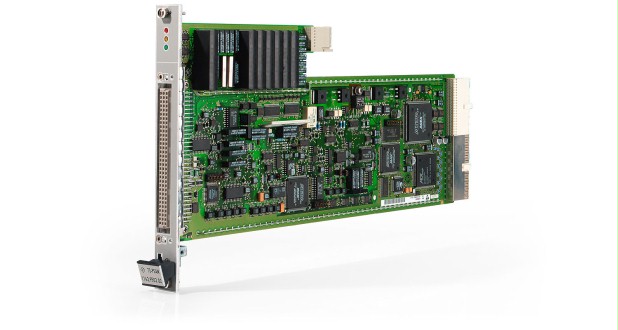

TS PSAM front lightbox landscape v2

Measurement

Multimeter / DMM

High-precision measurement of the required parameters, such as:

  • Volt
  • Ampere
  • Ohm
Multimeter
VXTS SM160 Schaltmatrix Multiplex Modul mit 160 Kanälen für den ICT und Funktionstest

Switching

Multiplex modules

Routing of signals from the test system to the DUT and back to the measuring equipment

Switching
TS PICT front lightbox landscape

Component test

In-Circuit-Test-Module

Testing of:

  • R, L, C, diodes, transistors, parallel R-C
  • Guarded resistance measurements (3-, 4-, 6-wire)
  • Guarded impedance measurements (3-, 4-, 6-wire)
  • Impedance
ICT
TS PSU side lightbox landscape

Current and voltage

Sources

4 quadrant power supply units for the DUT supply

Sources

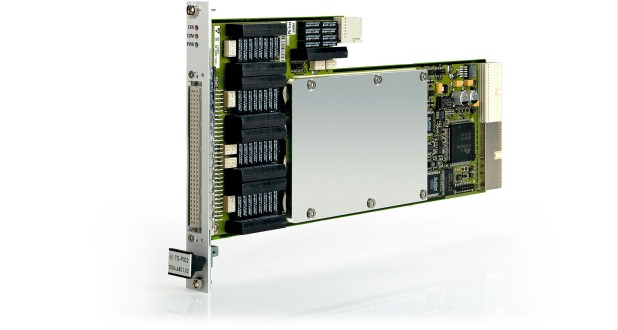

TS PIO2 front lightbox landscape

Control | Read | Communicate

Digital I/O modules

Acquiring and outputting signals

Digital IO
TS PFG Function Generator Module img2 lightbox landscape

Signal generation

Arbitrary generators / function generators

Adjustable frequencies and amplitudes for the generation of different signal patterns, such as:

  • Sine
  • Rectangle
  • Triangle
  • Sawtooth
  • PWM
Signal generation
TS PAM front lightbox landscape

Digitising high-resolution signal sequences

Oscilloscopes / Digitizers

Up to:

  • 1 GS/s
  • 16 bit resolution
Scopes

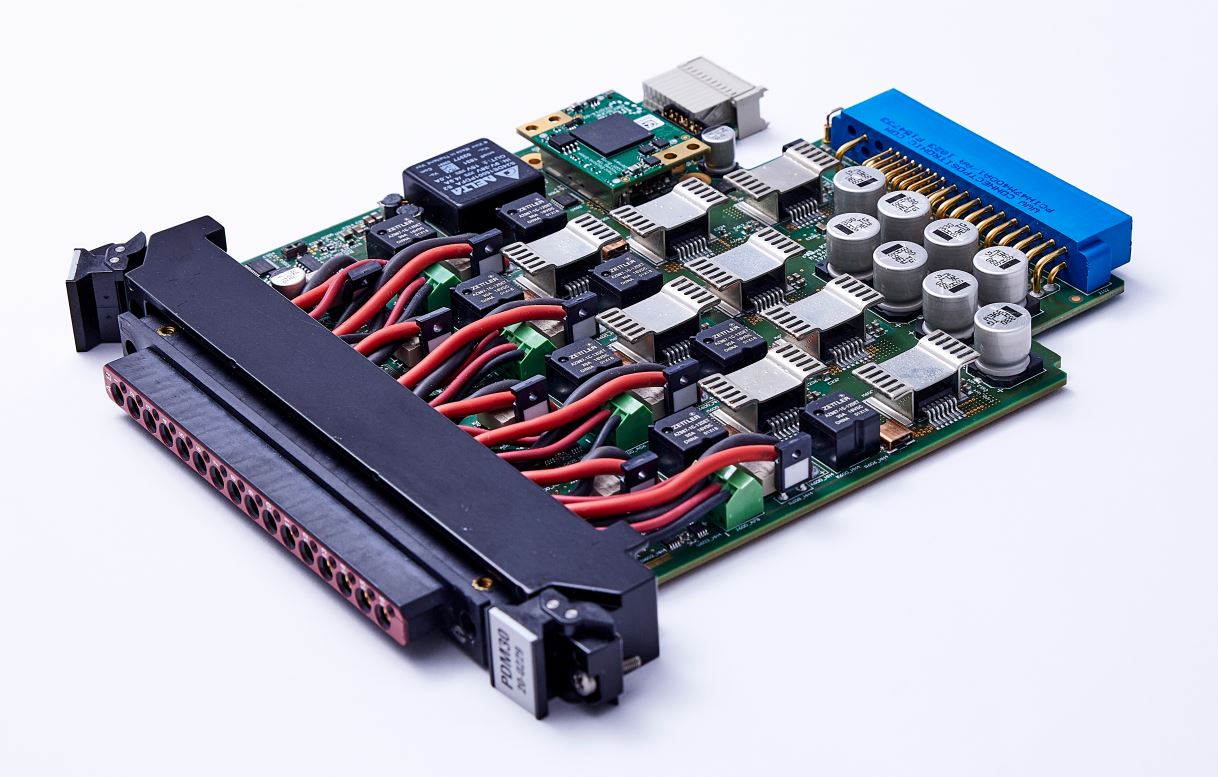

PDM30

Switching external currents

High-power switching module

Switching and multiplexing of high currents

High-power switching

Not found the right one? We will be happy to inform you about further modules!
