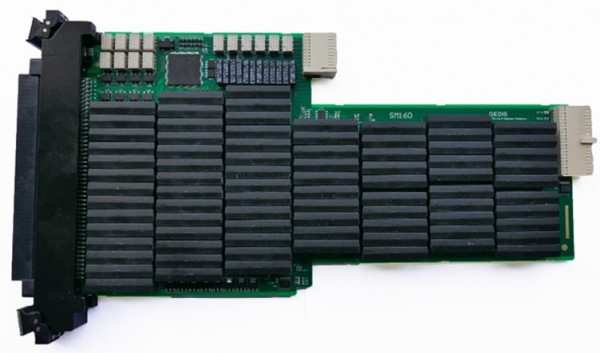

Switching matrix module SM160
Key facts:
- In-circuit test and function test
- 160 test points
- up to 125V and 1A
- 2 x 4:1 relay multiplexers
- 8 Photo-MOS switches
- 8 open-drain switches to GND
- Access to analogue measurement bus
- Integrated self-test capability (with DMM)
Order no.: 20-0226-01
Downloads

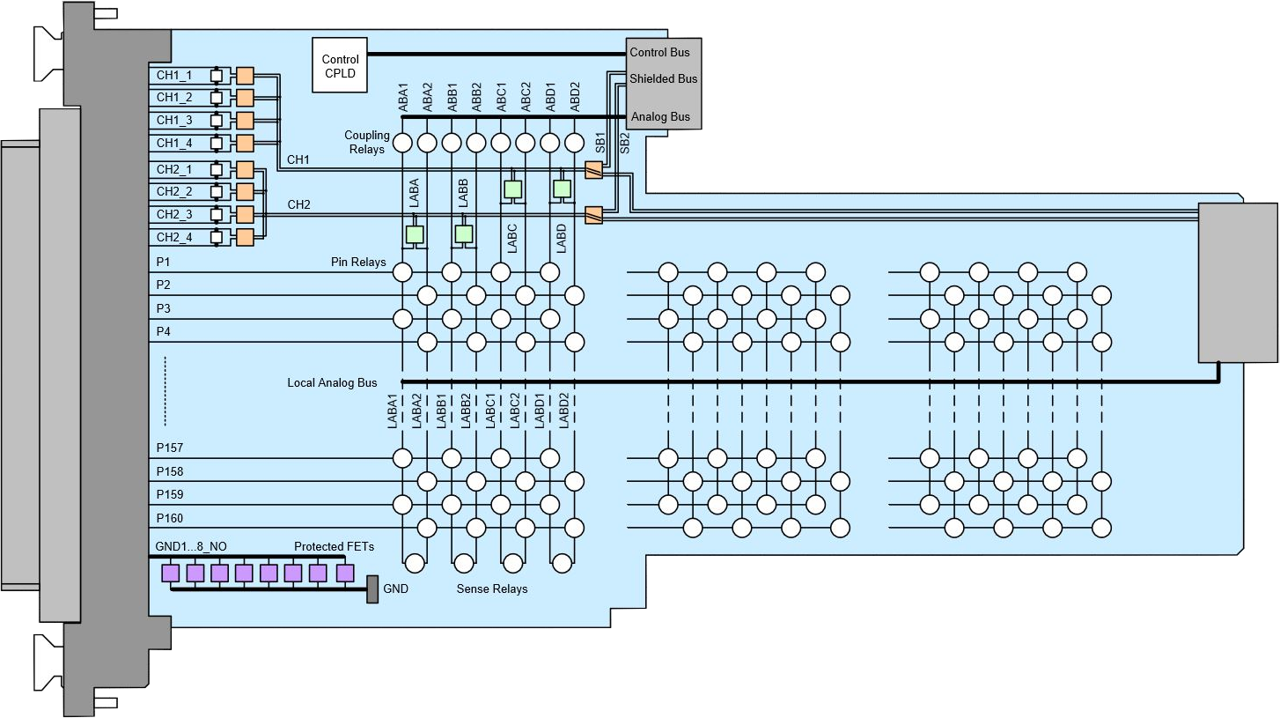

Block diagram
