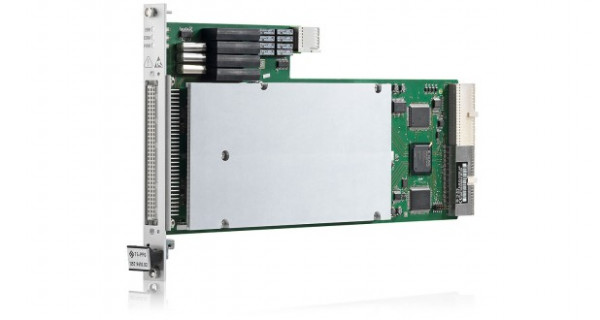

R&S TS-PFG
Key facts:
- Two fully independent, floating registration units with an operating voltage of up to 125 V DC
- Acquisition modes with up to eight single-ended or four differential channels
- High sampling rate of 20 Msample/s for two channels
- Multi-channel signal recording for up to eight channels at 5 Msample/s
- Synchronous acquisition of eight programmable reference signals and PXI triggers
- Access to analogue measurement and control bus
For more information, please visit the Rohde & Schwarz website.

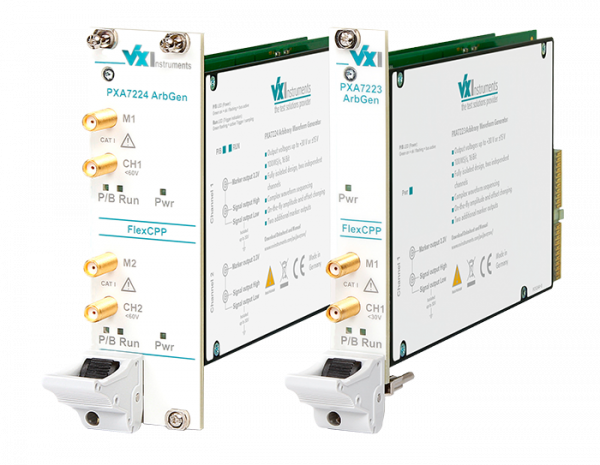

VXI PXA(e)72xx PXI/PXIe Arbitrary generator
Key facts:
- Output voltage up to +30 V or ±15 V
- Up to 200 MS/s at 16 bit resolution
- Fully isolated meter with up to 2 channels
- Sequencing of complex waveforms
- Multiple instrument and channel synchronisation options
- Highly flexible integrated trigger
- Spontaneous amplitude and offset changes possible
- Available with PXI or PXI Express interface
- 1 marker output per channel
- Wide sampling rate range due to internal programmable PLL
For more information, please visit the VX Instruments website.
