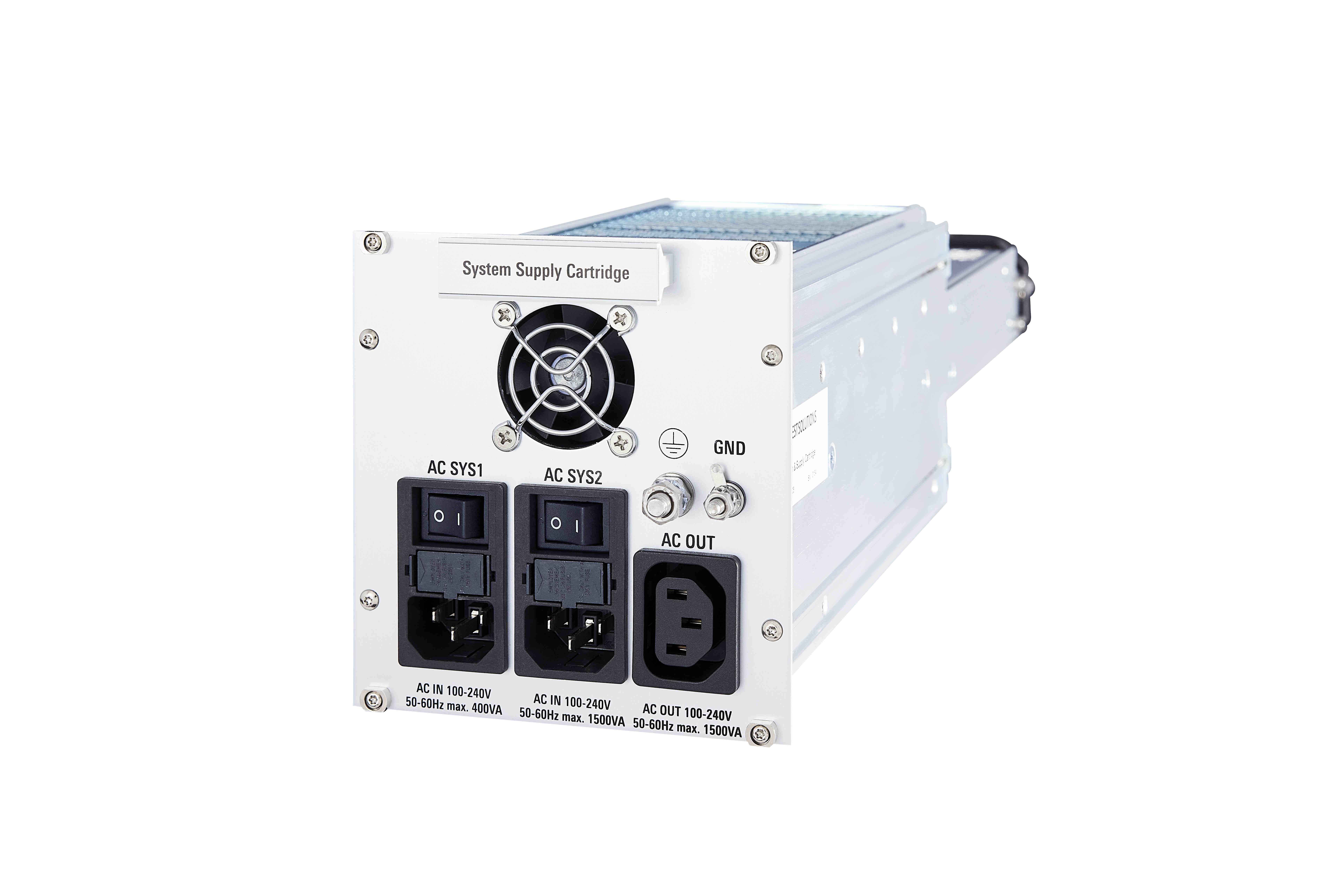

System Supply Cartridge - SSC
The SSC is required for every test system of the GT4000 series. Among other things, it serves as a power supply for the test system. In addition, however, it also offers 3 voltage outputs via its front connector, e.g. for the test adapter supply:
- +5V at 25 watts
- +24V at 25 watts
- +/-12V at 5 watts
Furthermore, the SSC provides 16 digital inputs (2.5V to 30V | max. 5mA) and 16 digital outputs (max. 30V | max. 0.5A), which can also be used freely.
Bilder Galerie System Supply Cartridge
