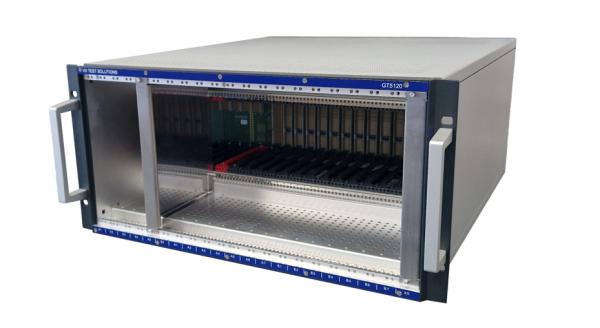

Test system GT5120
The compact!
- In-Circuit test
- Function test
- Boundary Scan
- Flashing
- Parallel test
- Combined test
Key facts
- 21-slot PXI(e) chassis
- Configurable for parallel testing
- Integration of all PXI and PXIe modules
- High availability due to service-friendliness and extensive system self-testing
- Compact design (19" wide, 5U, 520mm deep)
- Up to 125V and 1A internally switchable
- Up to 2080 test points / 2x 800 test points in parallel test
- Analogue measurement and control bus
- Integrated high-performance embedded PCIs controller
- Galvanic isolation of the measurement modules thanks to rear I/O concept
- Cascading of several test systems for massive parallel testing possible
Downloads

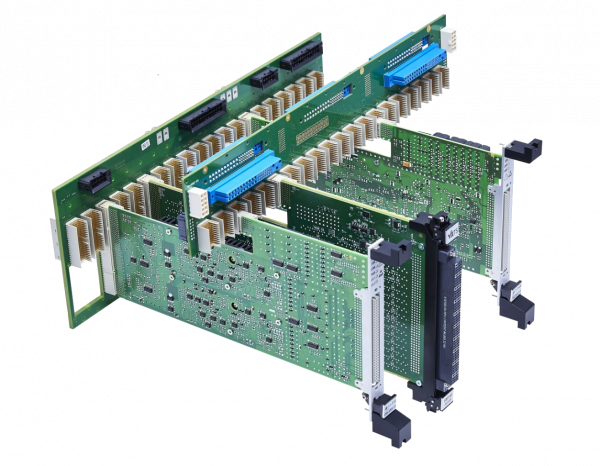

PXI Area
The PXI area is the section in which the measuring and switching modules are connected to the backplane. All modules based on PCI, PXI or PXIe can be integrated. A total of 21 slots are available, which can be assigned as follows:
- 1x R&S CAN
- 13x cPCI32 | R&S CAN
- 5x PXIe
- 2x system slots
The R&S and VXTS modules have direct access to the analogue measurement and control bus. If you want to use other modules from third-party suppliers, these signals can also be routed to the analogue bus if required.
The first slot provides the PCI serial slot for the integrated high performance controller.
Features der Systemkarte

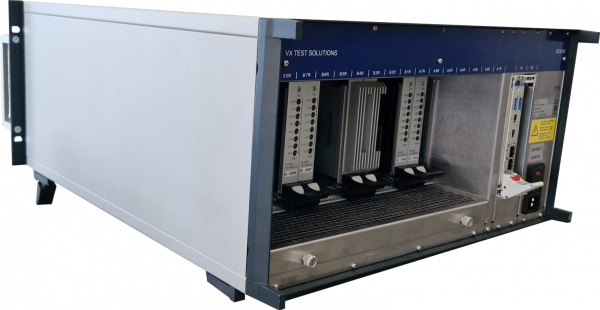

Rear IO Area
In the rear area there are:
- interfaces for the monitor (HDMI or display port), USB and LAN
- internal controller
- Slot for "link module" for cascading
- Rear IO module
- Mains plug connection
- Feed-throughs (e.g. high-voltage cables)
Analogue measurement and control bus
...saves you unnecessary wiring!
In addition to the PXI(e) backplane, the GT4210 has an analogue measurement and control bus. All measurement and switching modules from VX Test Solutions and Rohde & Schwarz that can be integrated into the GT4210 have access to the analogue bus. Thanks to the analogue bus, flexible interconnection of the individual measuring and switching modules is possible.
The analogue bus provides 8 lines, which also makes 6-wire measurement possible. In addition, the analogue bus has two shielded pairs of wires. Our software has an intelligence that prevents double assignment of a channel.
PXI(e) modules from market competitors can also be routed to the analogue bus. For this purpose, we offer you the development of corresponding ballast modules or also wiring concepts that lead the signals of the PXI module via the SM160 switching matrix card to the analogue bus.
