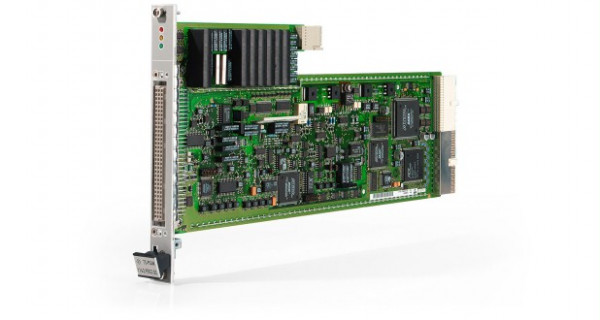

R&S TS-PSAM
Key facts:
- Potential-free measuring unit
- DC measuring ranges from 10 mV to 120 V, 1 μA to 1 A
- AC measurements up to 50 V (RMS), up to 1 A (RMS)
- Resistance measuring ranges from 1 Ω to 10 MΩ, 2-wire and 4-wire
- Measurement synchronisation via PXI clock and trigger
- Access to analogue measurement and control bus
For more information, please visit the Rohde & Schwarz website.
VXI PXM(e) 7820
4 devices in one:
- 16 bit high precision multimeter
- 16 bit isolated digitizer
- Trigger matrix
- Timer/Counter
Key facts:
- Switching time of less than 1 ms
- Up to 2 trigger I/Os on the front panel (8 on the rear panel)
- 2- and 4-wire resistance measurement
- Measurements from 250 mV to 500 Vpp
- >1 GΩ || <20 pF input impedance
- Available with PXI or PXI Express interface
- Fully isolated meter
For more information, please feel free to visit the VX Instruments website.
