Cartridges

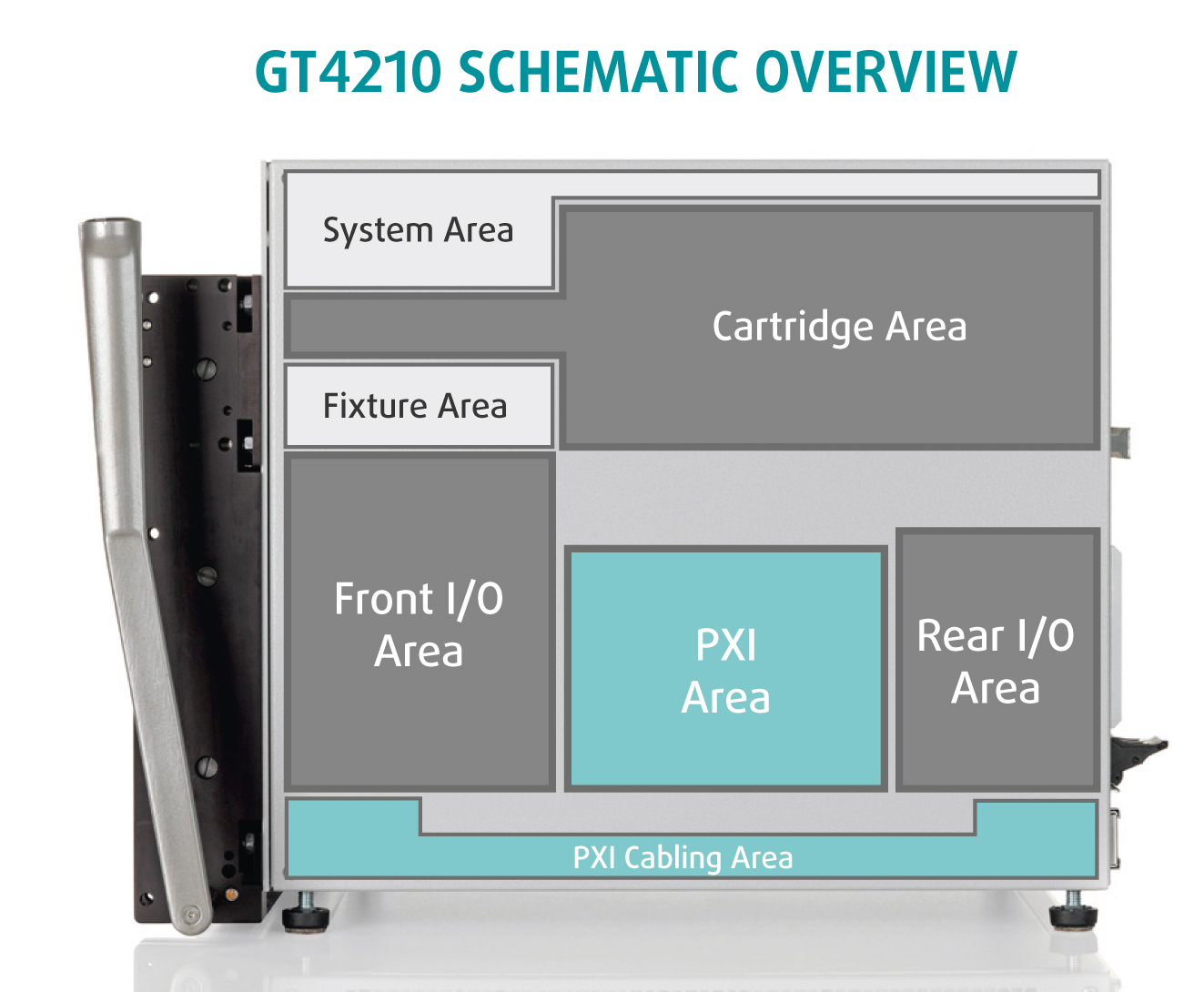

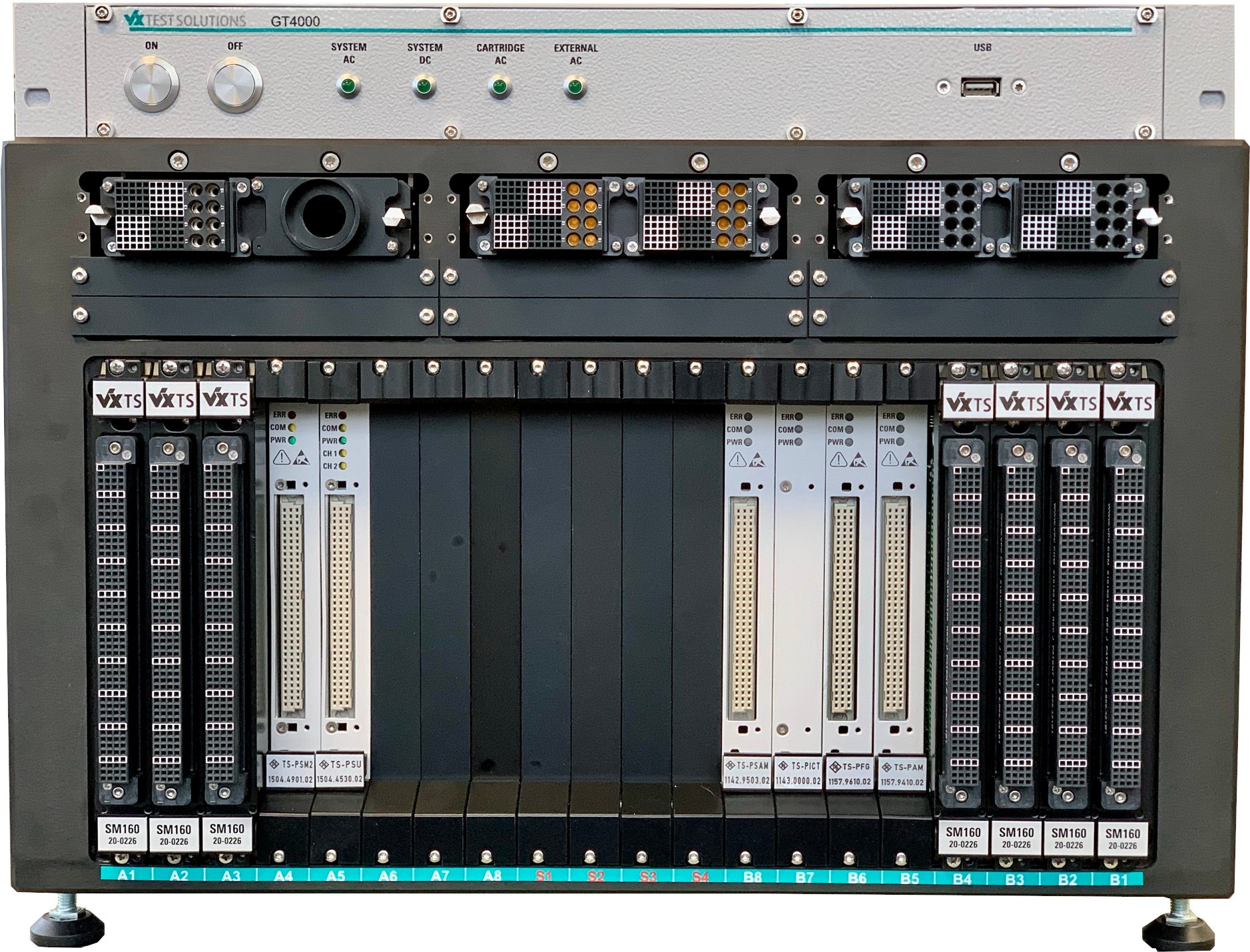

For the GT4000 test system series, we offer various exchangeable cassettes (cartridges), of which up to two can be installed in the cartridge area. Functionalities or hardware components required for the test can be integrated into the cartridges. These exchangeable cartridges are simply plugged into the back of the GT4000 test system and fixed in place with screw connections. Thus, the cartridges are designed to be very maintenance-friendly.
The signals of the integrated application are executed from the front of the cartridge via any interface.

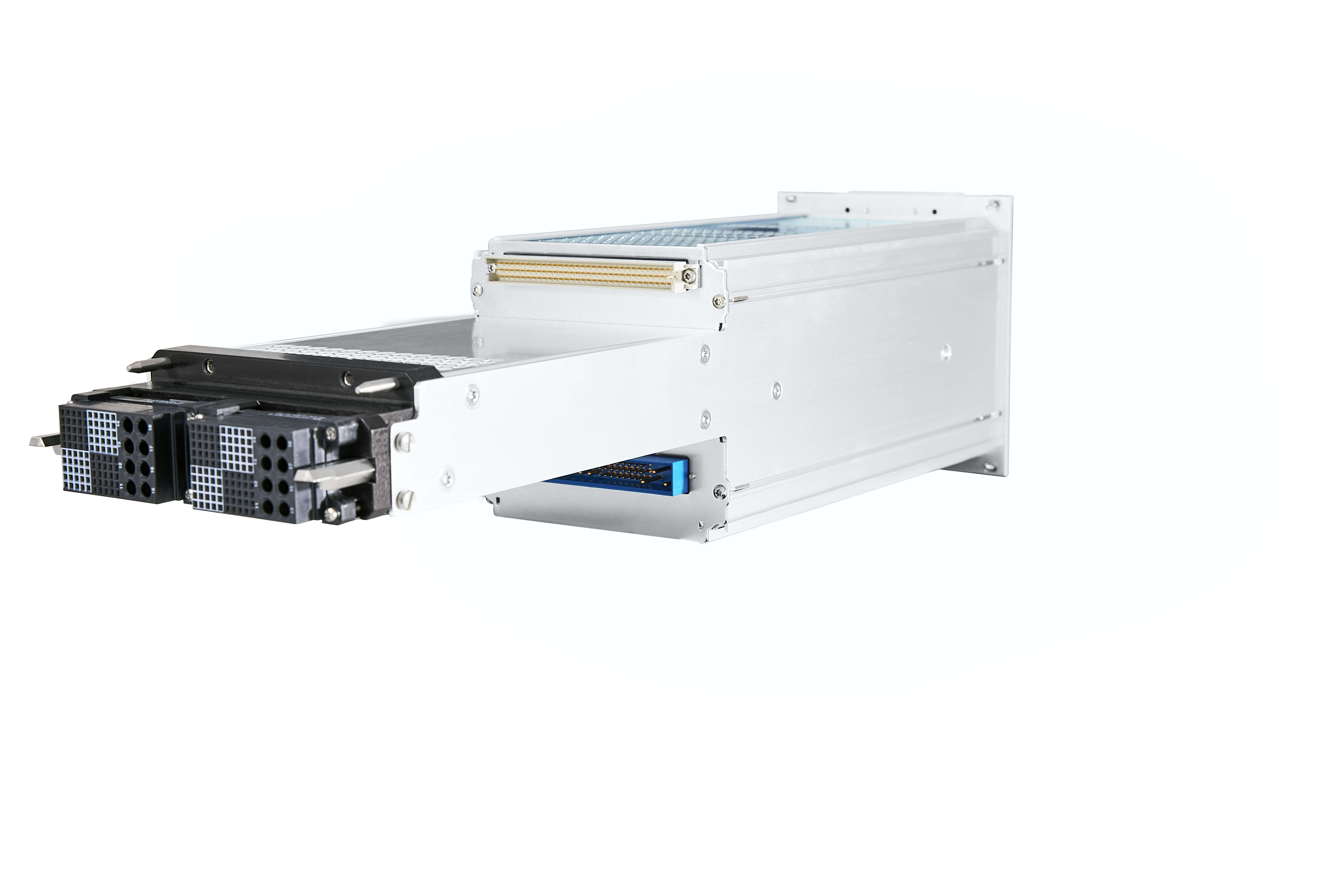

Universal Application Cartridge - UAC
The Universal Application Cartridge (UAC) is a freely configurable exchangeable cartridge. It offers sufficient installation space for up to 10 PCBs in Eurocard format. Typically, additional functions are integrated in it, such as:
- Programming devices,
- Loads,
- Boundary Scan Controller from JTAG Technologies,
- HF modules,
- or similar components.
Order no.: 20-0094-01

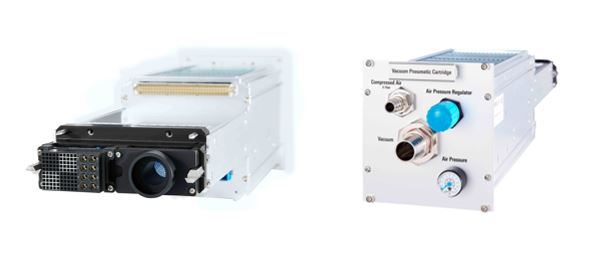

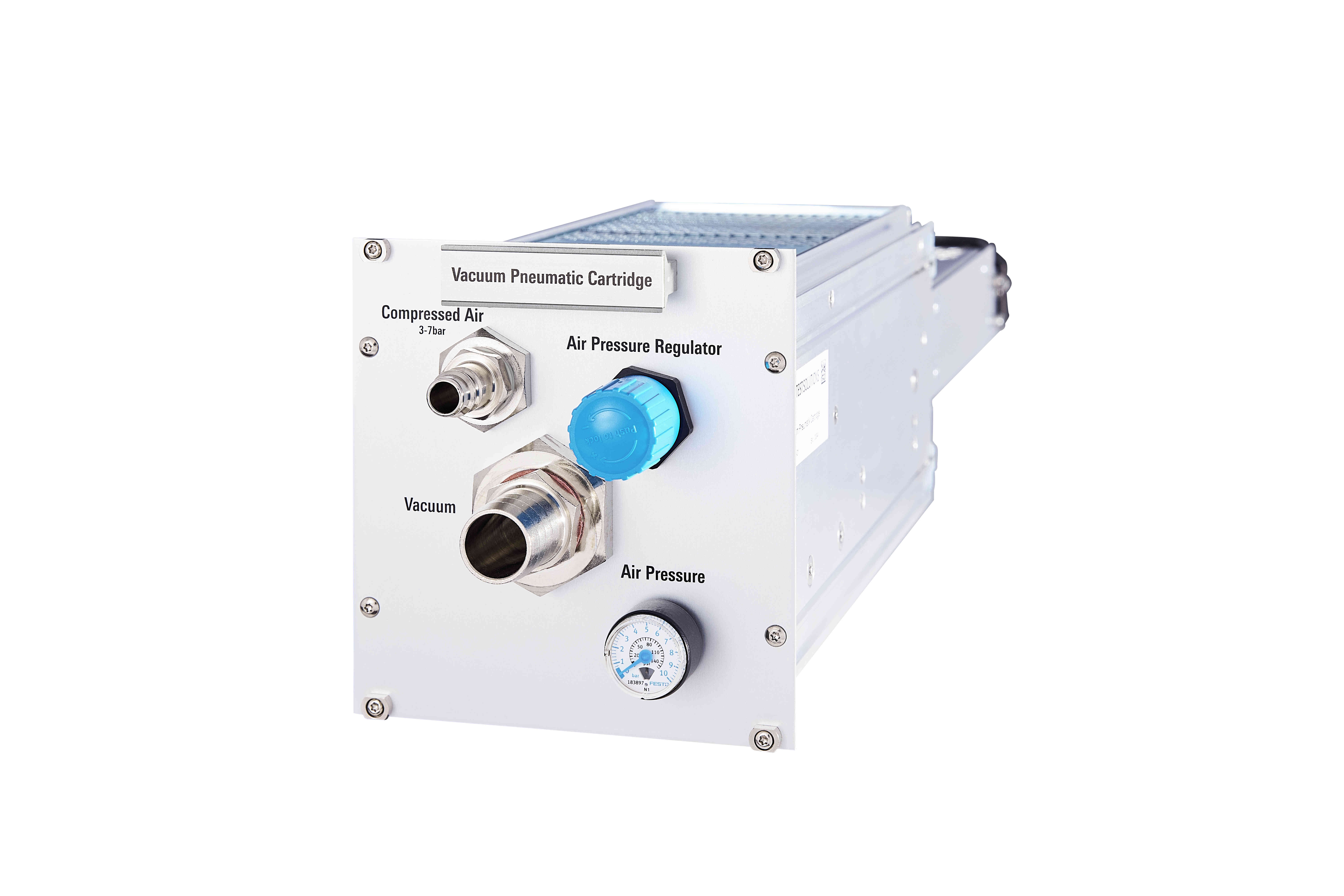

Vacuum Pneumatics Cartridge - VPC
You need compressed air or vacuum functionalities for adapter control or e.g. for actuating pneumatic switches? No problem, our vacuum/pneumatic cartridge (VPC) is the solution! It offers:
- 1x vacuum channel
- 8x compressed air channels, individually controllable
Order no.: 20-0232-01
