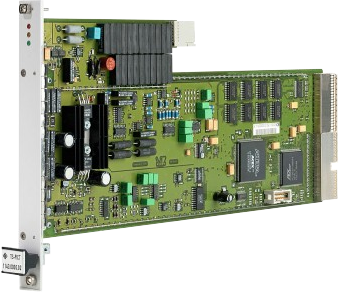

In-Circuit-Test

Key facts:

• In-circuit test extension module in conjunction with TS-PSAM and VXTS SM160
• Testing of R, L, C, diodes, transistors, parallel R-C
• Guarded resistance measurements (3-, 4-, 6-wire)
• Guarded impedance measurements (3-, 4-, 6-wire)
• Measurement frequencies 100 Hz, 1 kHz, 10 kHz for impedance tests
• Low stimulation voltage for isolation of diodes and ICs

For more information, please visit the Rohde & Schwarz website.
