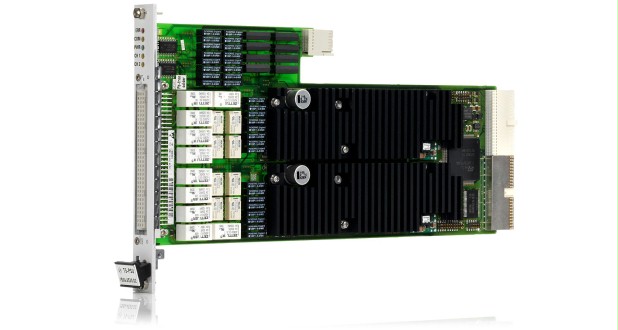

R&S TS-PSU
Key facts:
- Powerful 4-quadrant power supply for voltage and current supply of the DUT during functional tests
- Recording of current/voltage characteristics of the unit under test
- Two fully independent, potential-free channels up to ± 50 V and up to 50 W
- Electronic load functionality 2 x 20 W / 25 W peak
- High current 3 A /15 V, 1A / 50 V (2 x 50 W)
- Auxiliary voltage source for in-circuit tests (e.g. up to 100 V for Zener diodes)
- Charge/discharge tests (e.g. by defined discharge of batteries)
- Integrated self-test function from quick diagnostics to fully automatic testing of all relays and switching paths (R&S®TS-PSAM required)
- Access to the analogue measurement and control bus
For more information, please visit the Rohde & Schwarz website.

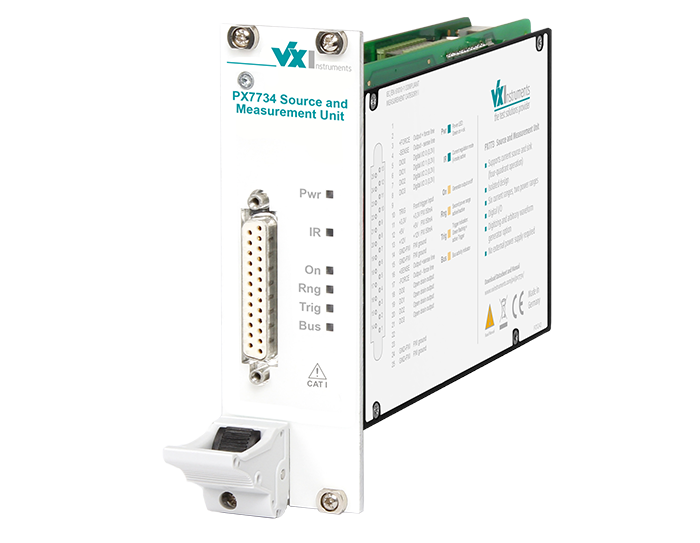

VXI PX773x
Key facts:
- 4-quadrant operation (can be used as source and sink)
- No external power supply necessary
- Fully isolated meter
- Various voltage ranges from 10 V to 60 V
- 6 ranges for current measurement from 10 µA to 1 A
- Integrated measuring units for voltage and current
- 8 digital I/Os
- Very high slew rate for fast pulses
- Optional digitizer and arbitrary waveform generator function
For more information, please visit the VX Instruments website.
