Project examples
In the following, we would like to show you a small excerpt from projects that have already been realised.

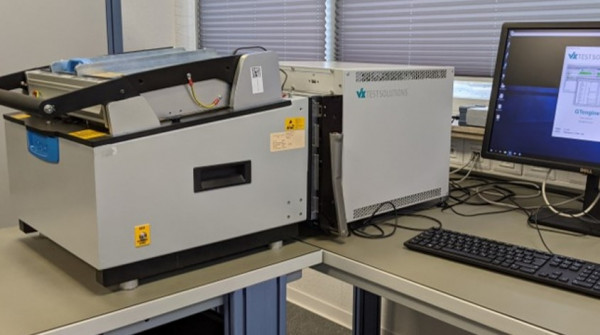

Manual adapter with direct contacting
This project exists in similar form in a wide variety of versions. Our GT4210 test system is directly connected to the test fixture via the tightening mechanism and the VPC interface.
Typical applications are:
- In-Circuit test (ICT)
- Functional Test (FKT)
- Boundary Scan
- Flashing
- Parallel test and combination test (2-stage contacting)
- Alternatively also tandem adapter
- Manual operation or robot control
- Vacuum/pneumatic control
In addition, this combination can be found in different integration forms (19" rack, GTE1000,...).

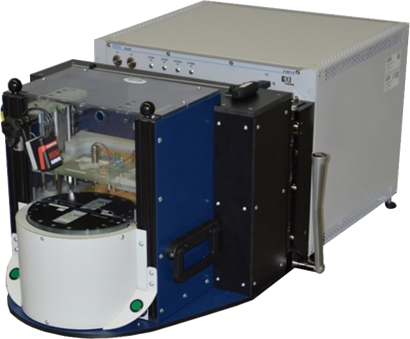

Test system with a rotary adapter!
Application for automotive device
- Function test (FCT)
- In-Circuit Test (ICT)
- Parallel insertion / removal
- Manual handling / robot handling
Installations
- Germany
- China

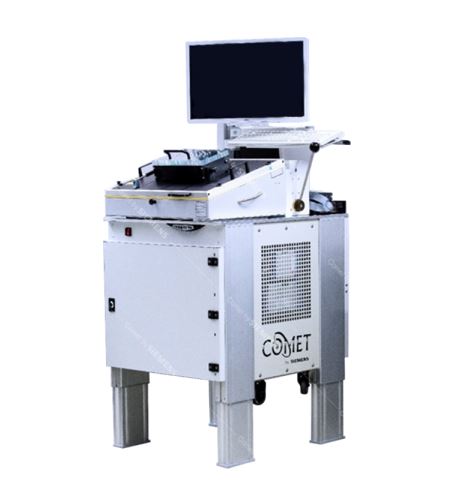

In-house standard test system
Our test system replaced a test system developed by our customer over many years. For this purpose, a concept was also implemented for the continued use of the existing test adapters (>1000 pcs.) with pylon interface. Our customer exclusively procures our test system, integrates two additional PXI(e) modules himself and installs the test system in the rack module.
Application
- Function Test, In-Circuit Test, Boundary Scan
- Combined Test (ICT and FCT)
- Test Management Software (GTS)
- Connection to customer-specific MES system
- Manual, robot-controlled
Installations (> 85 systems)
- Germany
- Great Britain
- China

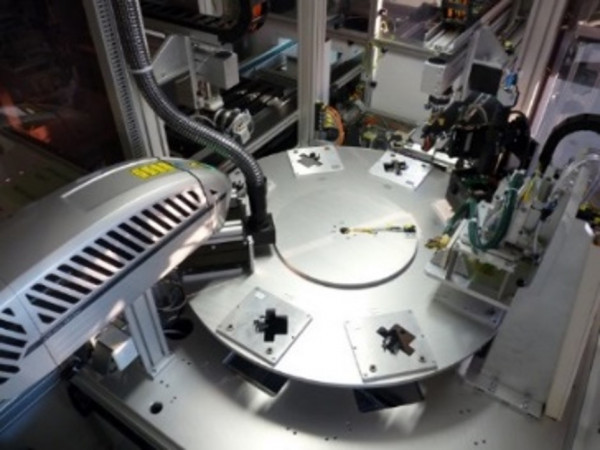

Round indexing table
Complete, fully automated inline test of multiple DUTs at different stations at the same time.
Application for automotive products
- 1st station: DMC scan and solder joint inspection
- 2nd station: In-Circuit-Test (ICT)
- 3rd station: Programming
- 4th station: Functional Test (FCT)
- 5th station: Laser marking
- 6th station: IO / NIO handling
Installations (5x)
Germany
China

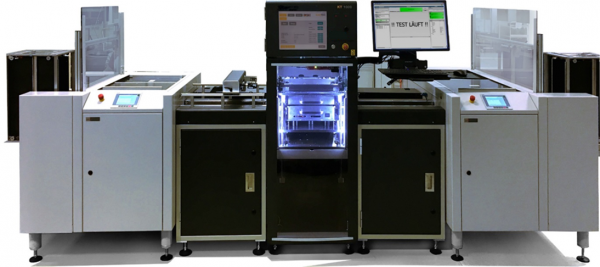

Inline test system
Application for automotive and industry
- Function Test (FCT)
- LED Test
- In-Circuit Test (ICT)
- Parallel Test (FCT, ICT)
- Programming (Flash)
- Panel handling
- IO/NIO Handling
Installations
- Various in Europe
- 2x China

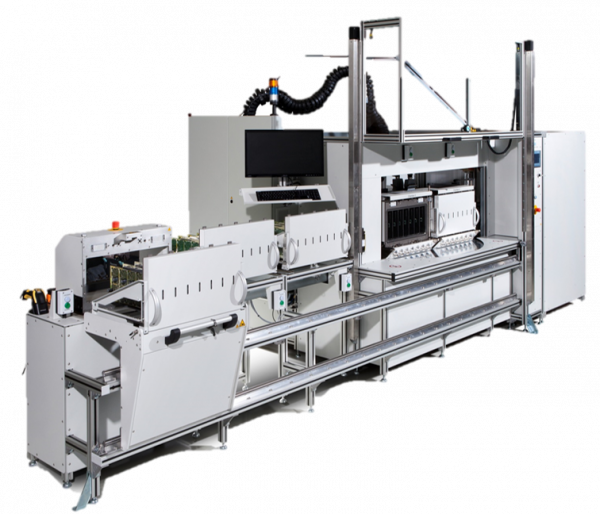

Temperature controlled test
Application
- Parallel tempering (+20° --> -40° --> +80° --> +20°) and testing of airbag control units
- Fast retempering
- Chamber system with exchangeable carrier modules
- No icing or condensation
Installations
- 3x China
- 2x Mexico
- 3x Romania
- 1x Germany (smaller version)
